Smart Door Lock

Functionality

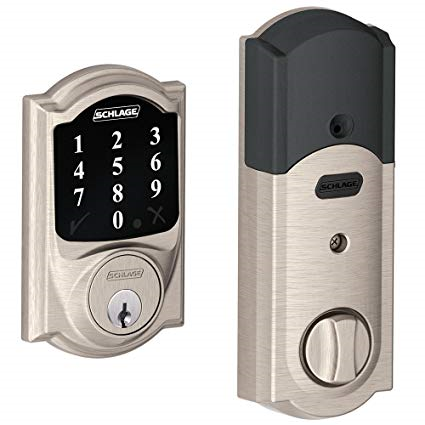

The Schlage Z-Wave door lock is a 100% wireless deadbolt door lock. With its innovative touchscreen feature, you have the convenience of going keyless and no longer having keys to lose, hide, carry or forget.

Specifications

Manufacturer/Model Number: Schlage BE468

Exterior Dimensions: 3" x 5" x 1"

Interior Dimensions: 3" x 8" x 2"

Control Panel Compatibility: Hub, XT, and IQ

Battery: 4 AA Alkaline Batteries

Battery Life: Approx. 12 months with regular use

User Code Limit: 30 User Codes

Operating Temperature Range: -31 F to 151 F

Notes

A physical key is provided with the Lock

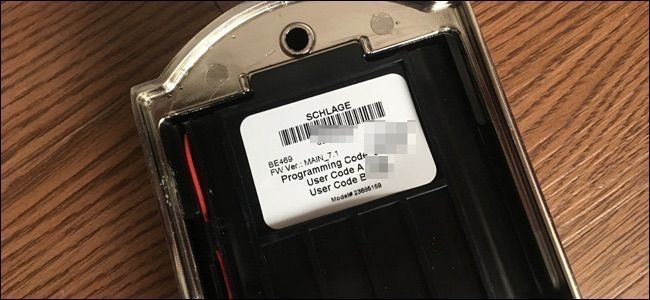

The Default Programming Code and default User Codes are found on the inner portion of the lock opposite of the battery compartment. The customer must take down the lock if it is already bolted to the door. See below:

Kick resistant, pick resistant, and sledgehammer resistant

Failed attempt notification

Certified by BHMA (Builder Hardware Manufacturer Association - BHMA is nationally recognized for its leadership role in ensuring the quality and performance of builder’s hardware.)

How to Enroll/Add Lock Module (Inclusion Mode):

Ensure the panel and lock are within 5' from each other

Open the door and ensure the bolt on the lock is extended

Place the panel into Learn Mode

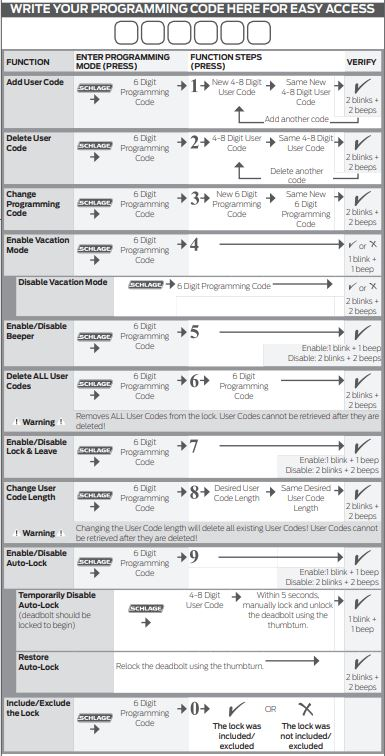

Press Schlage Button -> 6-Digit Programming Code + 0 (if the customer does not know the programming code, see above where to locate)

A green checkmark will appear if the lock was included properly.

Please wait ~2 minutes for a full secure enrollment before sending future commands

How to Remove/Delete Lock Module (Exclusion Mode):

Ensure the panel and lock are within 5' from each other

Open the door and ensure the bolt on the lock is extended

Place the panel into Delete Mode

Press the Schlage Button -> 6-Digit Programming Code + 0 (if the customer does not know the programming code, see above where to locate)

A Green Checkmark will appear if the lock was excluded properly.

To Reset Lock to Factory Default Settings:

Remove the cover and disconnect the batteries.

Press and hold the Schlage Button

While holding the Schlage Button, reconnect the batteries.

The inside indicator and Green Checkmark will blink if the Factory Default Reset is successful.

If you are moving the lock to a new door, install the lock on that door before continuing

To check that the lock was reset, press the Schlage Button and enter one of the default user codes. If the reset was successful, the default user codes will unlock the deadbolt.

The lock must set up again after the reset is complete. If setup process is needed, see below.

To Set Up the Lock (The customer should have already completed this step, but if needed):

Open the door if it is not already open

Press the Schlage button first to enable the backlight

Enter one of the Default User Codes into the lock

The lock will perform a setup routine. Wait until the bolt stops moving before continuing

NOTE: If the touchscreen did not light up during this step, you may have a power problem. Check the batteries to ensure they are installed correctly as well as the battery wires are all connected properly. If so, install a fresh set of batteries.
