How to mount my Touchscreen on the wall

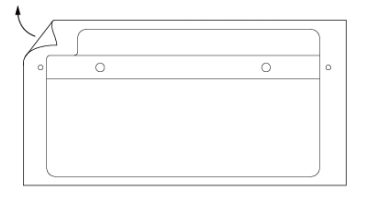

  • Take out the Mounting Plate and remove its protective film

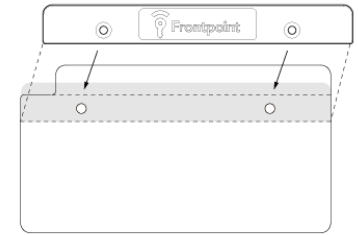

  • Apply the Wall Mounting Bracket onto the Mounting Plate.

  • Use the holes on the bracket as template to drill holes.

  • Insert the wall plugs if fixing it into plaster or brick.

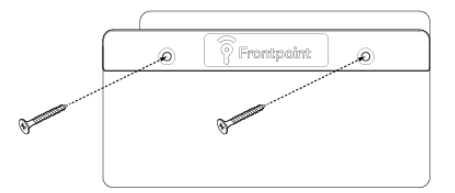

  • Use the two holes as template to drill holes and screw the bracket into the wall.

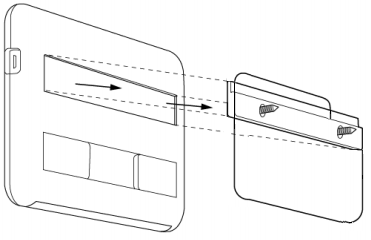

  • Attach the Touchscreen onto the bracket

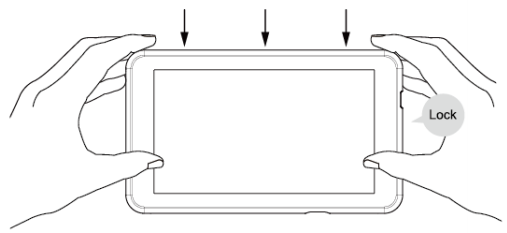

  • Hold the Touchscreen and gently push it downwards.
